Can I Replace a Kitchen Extractor Fan Myself? A DIY Guide

You’re standing in your kitchen, staring at that noisy, grease-clogged box on the wall. It’s not pulling smoke anymore, and it sounds like a dying helicopter. The handyman quote says $300 for labor alone. You think, "How hard can it be?" Spoiler: Replacing a kitchen extractor fan is one of the most manageable home improvement tasks you can tackle, provided you respect electricity and measure twice.

But before you grab your screwdriver, you need to know if your specific setup allows for a swap or if you’re walking into an electrical maze. This guide breaks down exactly when you can do it yourself, what tools you actually need, and how to avoid the three most common mistakes that turn a simple job into a weekend nightmare.

Is Your Extractor Fan Actually Replaceable?

Not all fans are created equal, and some are harder to replace than others. Before buying a new unit, identify which type you have. This determines the difficulty level.

• Wall-Mounted Inline Fans: These sit inside the cabinet or above the stove and connect to ducting. They are generally the easiest to replace because they often plug into a standard socket behind the cabinet.
• Ceiling-Mounted Units: These are harder. You’ll need to access the ceiling void, which might involve removing tiles or plasterboard. If the wiring is buried deep in the joists, you might need an electrician.
• Downdraft Systems: Common in modern island kitchens. These pull air sideways through the benchtop. Replacement often requires disassembling the entire cooktop unit, making them a moderate-to-hard DIY task.
• Integrated Cabinet Fans: These are built into the overhead cupboard structure. If the housing is damaged, you might need a carpenter, not just an electrician. If only the motor unit is broken, it’s usually a straightforward swap.

If your current fan has a visible power cord plugged into a switch spur (a small socket with a switch) located in the cabinet next to it, you are in luck. That is the golden ticket for DIY replacement. If the wires disappear directly into the wall without a visible plug, you are dealing with hardwiring, which brings us to our next point.

The Electrical Safety Reality Check

In Australia, and specifically here in Adelaide, electrical work regulations are strict. According to the South Australian Electrical Regulations, any work involving the connection of fixed appliances to the mains supply must technically be performed by a licensed electrician. However, replacing a like-for-like appliance where the existing wiring remains intact and accessible is often considered a grey area for homeowners.

Here is the rule of thumb: If you are swapping a unit that plugs into a socket, you are safe. If you are cutting wires and reconnecting terminals inside a junction box, you should hire a pro. Why? Because if something goes wrong-like a loose neutral wire causing a fire-your home insurance might not cover it if the work wasn’t certified.

Measuring Up: Getting the Right Fit

The biggest frustration in this project isn’t the wiring; it’s realizing the new fan doesn’t fit the hole. You cannot simply buy a fan based on looks. You need precise measurements.

Grab a tape measure and check these three dimensions:

1. Mounting Hole Diameter: For round fans, measure the internal diameter of the circular cutout in the wall or ceiling. For square units, measure the width and height of the opening. Most standard inline fans use a 150mm (6-inch) ducting size, but older homes might have 125mm or 100mm.
2. Depth Clearance: Measure from the front face of the mounting surface back into the cavity. If you have cabinets directly above or beside the fan, ensure the new motor unit fits within that space. Some slimline models are designed specifically for tight cupboards.
3. Ducting Size: Check the diameter of your existing flexible ducting. If your new fan comes with a different outlet size, you will need an adapter collar. Don’t assume sizes match.

Pro Tip: Take photos of your old fan’s mounting bracket and wiring configuration before removing anything. When you’re up on a ladder holding a heavy metal box, you’ll thank yourself for having those reference images.

Tools You Actually Need

You don’t need a workshop full of gear. Here is the essential kit list for a standard replacement:

• Safety Gear: Dust mask (grease dust is nasty), safety glasses, and gloves.
• Power Tools: Cordless drill/driver with Phillips and flathead bits.
• Hand Tools: Screwdrivers (various sizes), pliers, and wire strippers if you are touching terminals.
• Sealing Supplies: Silicone sealant (kitchen/bathroom grade) and aluminum foil tape. Do not use ordinary duct tape; it dries out and falls off in heat.
• Ladder: Ensure it’s stable. Kitchens have slippery floors; put a towel down if needed.

Step-by-Step Replacement Process

Once you’ve confirmed safety and bought the right part, follow this sequence. Rushing leads to stripped screws and crossed wires.

Step 1: Isolate the Power

Go to your switchboard. Turn off the circuit breaker for the kitchen lights and outlets. Test the fan switch to ensure it’s dead. Then, use a non-contact voltage tester on the wires themselves. Never trust a switch alone.

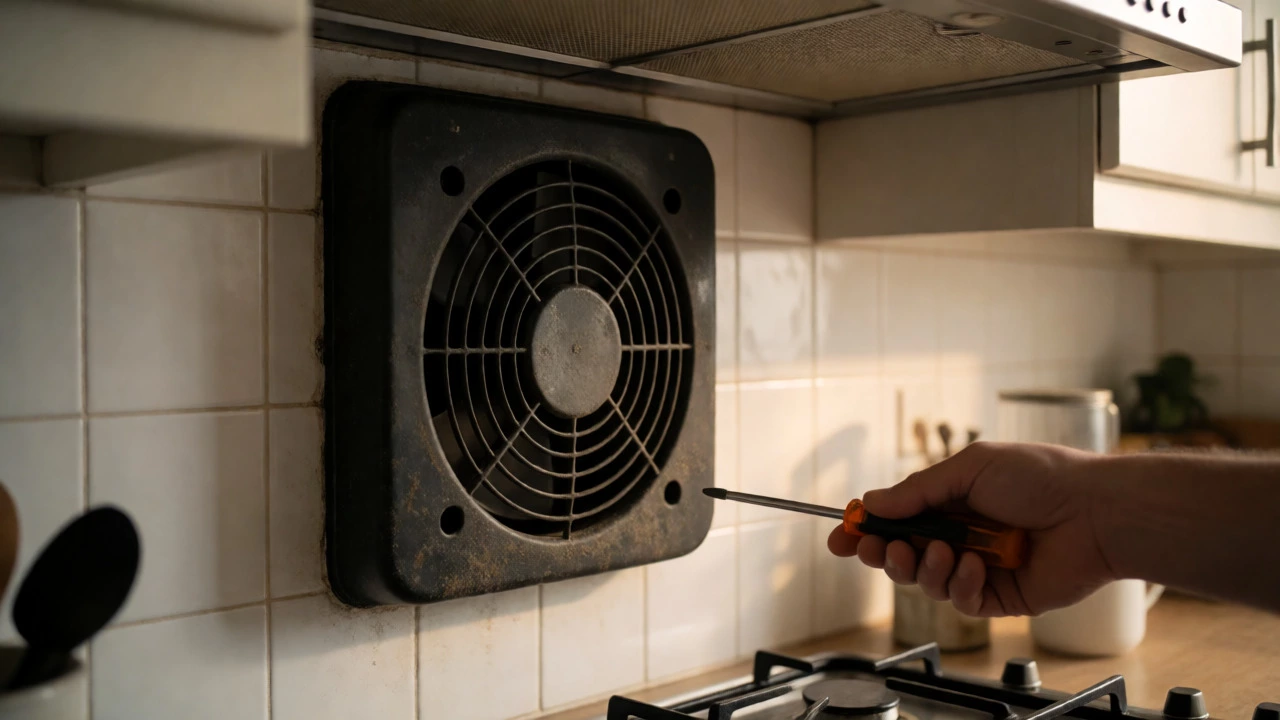

Step 2: Remove the Old Unit

Unscrew the decorative cover or grille. Set it aside carefully-it’s usually plastic and snaps easily. Next, disconnect the power source. If it’s plugged in, unplug it. If it’s hardwired, remove the cover plate on the junction box, take a photo of the wire connections (Live/Brown, Neutral/Blue, Earth/Green-Yellow), and unscrew the terminals.

Support the weight of the fan as you remove the final mounting screws. Grease buildup adds significant weight over time. Lower it gently to avoid damaging the drywall or ceiling plaster.

Step 3: Prepare the Opening

Scrape away old silicone and paint from the edges of the hole. Vacuum out the dust and debris from the ducting end. If the existing flexible ducting is torn or crushed, now is the time to replace it. Use rigid ducting for long runs if possible, as flexible ducts restrict airflow more.

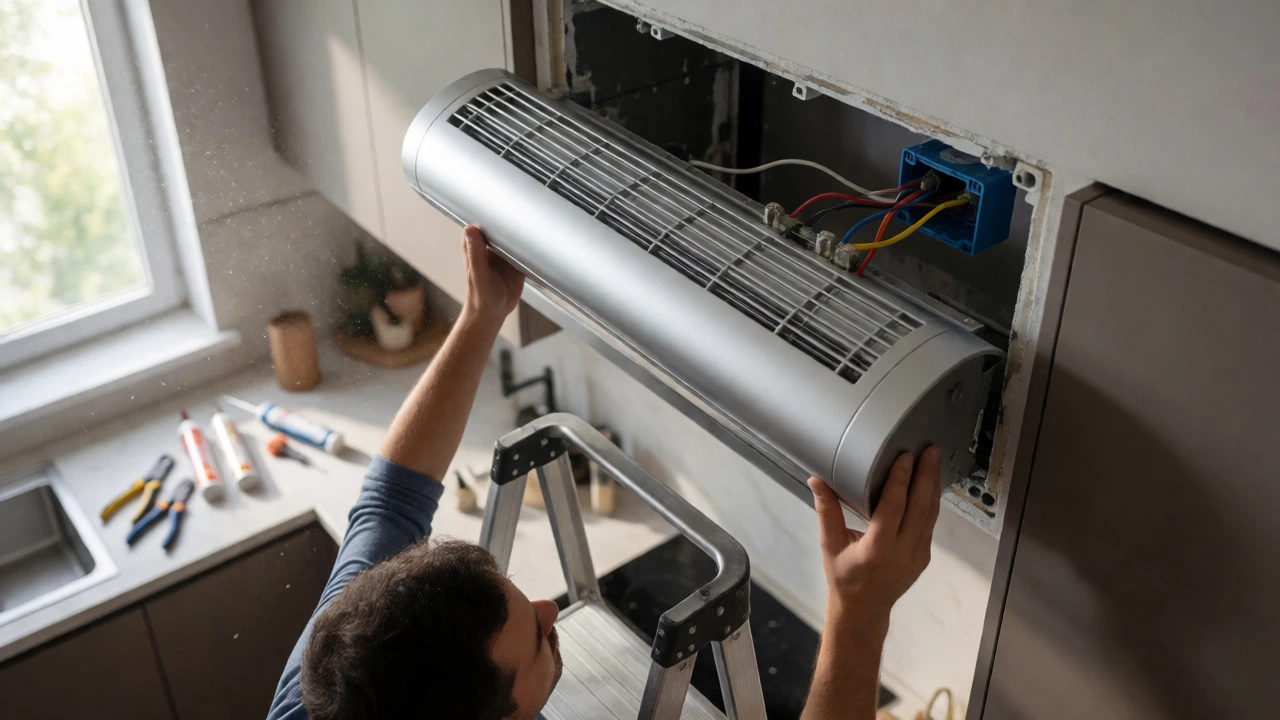

Step 4: Install the New Fan

Apply a bead of silicone around the rim of the new fan’s housing (if recommended by the manufacturer). Insert the unit into the hole. Secure it using the provided brackets or screws. Ensure it sits flush against the surface. If there are gaps, fill them with expanding foam or silicone to prevent air leaks.

Step 5: Connect Ducting

Slide the flexible ducting over the fan’s outlet spigot. Secure it tightly with aluminum foil tape. Wrap the tape around the joint completely to create an airtight seal. Loose ducting causes rattling noises and reduces efficiency.

Step 6: Wire and Test

Reconnect the electrical wires. Match Live to Live, Neutral to Neutral, and Earth to Earth. Tighten the terminal screws firmly. Give each wire a gentle tug to ensure it won’t slip out. Tuck the wires neatly into the junction box and close the cover.

Turn the power back on at the switchboard. Switch on the fan. Listen for smooth operation. Hold a piece of tissue paper near the intake-if it sticks, you have good suction. Check for air leaks around the edges by feeling for drafts while it runs.

Common Pitfalls to Avoid

Even experienced DIYers make mistakes here. Watch out for these traps:

• Ignoring Airflow Direction: Some fans are reversible. Ensure the arrow on the housing points toward the outside exit, not back into the room.
• Crushing the Ducting: When tucking the fan into a tight cabinet, don’t pinch the flexible ducting. A kinked duct cuts airflow by half, making even a powerful fan useless.
• Skipping the Earth Wire: In Australia, earthing is critical for safety. Never leave the green/yellow wire disconnected just because the old one didn’t seem to have one.
• Over-Tightening Screws: Plastic housings crack easily. Snug is enough. Cracked housings lead to vibration noise later.

When to Call a Pro

Despite the simplicity, there are times when DIY isn’t worth the stress. Call a licensed electrician if:

• The wiring colors are non-standard or burnt.
• You discover asbestos in the insulation surrounding the ducting (common in pre-1990s homes).
• The fan needs to be relocated to a new spot entirely.
• You are uncomfortable working with live electricity after testing.

A professional installation typically costs between $150 and $300 in Adelaide, depending on accessibility. Compare that to the cost of fixing a botched electrical connection or replacing cracked cabinetry, and the value becomes clear.
